Design for Manufacturability (DFM) refers to the core engineering methodology of designing injection molds for high manufacturability and cost efficiency—a principle applicable across engineering fields, with implementation details tailored to specific molding technologies. At GPTMOLD, we regard DFM as the foundational step for delivering high-quality, precision molds (including plastic precision molds and optical lens molds) and ensuring seamless product launches.
Prior to initiating formal mold design, GPTMOLD will submit a comprehensive DFM report to the customer for review and approval. This report encompasses the following critical components:
- Parting Line Proposal: Defines the interface between the two mold halves, balancing aesthetic requirements and structural functionality to avoid weak points in the final molded part.

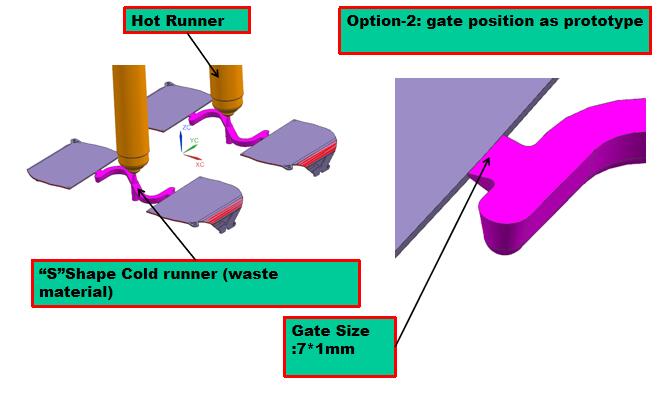

- Gating Position Proposal: Determines the entry point of molten material into the mold cavity, a key factor in ensuring uniform material flow—especially critical for optical lenses requiring strict dimensional accuracy.
- Draft Analysis: Evaluates the cavity wall inclination angle to ensure smooth ejection of the molded part, preventing deformation or surface damage during the demolding process.
- Sliders & Special Mechanisms Proposal: Outlines solutions for undercuts or complex structural features, verifying the feasibility and efficiency of moving components to meet the part’s design specifications.
- Ejection Method Proposal: Recommends optimal ejection schemes (e.g., push-rod ejection, stripper plate ejection) based on the part’s geometry and material properties.
- Part Design Optimization Proposals: Suggests targeted adjustments to the part’s structure (e.g., adding draft angles, modifying geometric features) to enhance mold manufacturability without compromising product performance。
The design phase is a critical juncture in injection mold development, as it locks in the majority of the mold’s lifecycle costs. A superior mold design must not only meet the product’s functional requirements but also be compatible with practical manufacturing processes. All too often, theoretically sound designs prove unfeasible or cost-prohibitive to produce. To avoid this, GPTMOLD implements a rigorous design review process: our engineering team develops the initial design model, then conducts cross-departmental manufacturing feasibility assessments, and finally incorporates customer feedback to refine the design. Skipping this step can lead to manufacturing failures, delays, and cost overruns.
In essence, DFM is a practice that integrates part design and mold manufacturability. Its core objective is to achieve the optimal balance between product performance and the ease of mold fabrication and assembly.
In the fields of product design and precision mold manufacturing, DFM is an indispensable process for ensuring successful product launches. By submitting the DFM report for customer validation upfront, GPTMOLD ensures that all design elements are fully aligned with the customer’s expectations and technical requirements. Close collaboration with the customer throughout the DFM review phase allows for the timely resolution of potential issues, optimization of design details, and ultimately, the delivery of molds that meet high standards of quality, efficiency, and cost-effectiveness.
In conclusion, the customer’s approval of the DFM report is a critical checkpoint in GPTMOLD’s mold design workflow. Through this collaborative approach, we minimize manufacturing risks, shorten project lead times, and ensure that the final mold delivers consistent, high-quality molded parts that meet our customers’ exact needs.
